Step 1

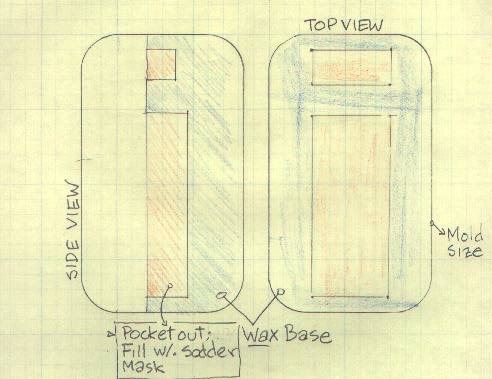

On Wax Base (blue), mill pockets and fill with Solder Mask
(orange).
Wait for Solder Mask to cure.
|
|
|
Step 2
Plane off Solder Mask

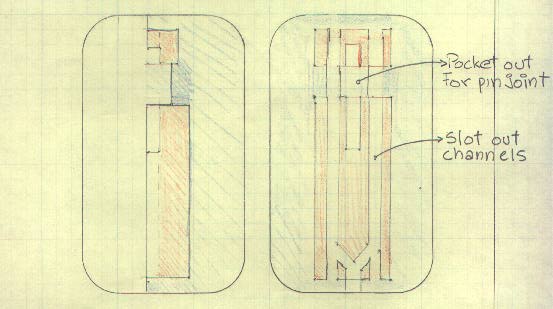

Mill channels (white) and pocket for Pin Joint
|
|
Step 3

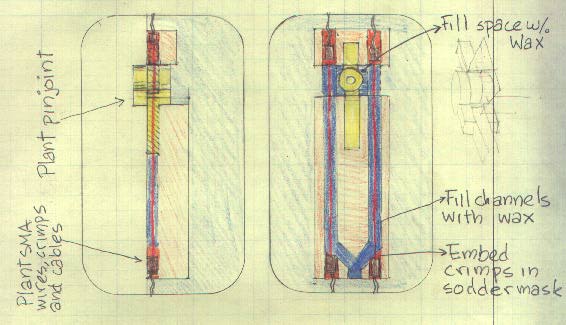

Embed SMA Wires (red) with Crimp Anchors (brown) and Pin
Joint (yellow)
Step 4
Embed Crimp anchors with Solder Mask (orange).
Fill channels with Wax (blue)
Fill Pin Joint pocket with Wax (blue)
|
|
Step 5

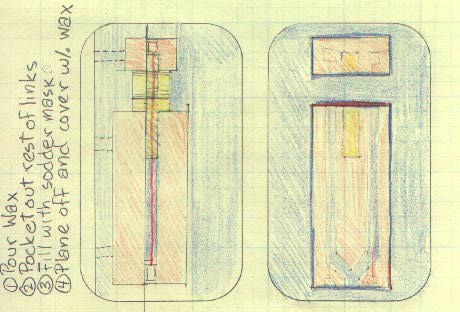

Pour Wax (blue), wait for it to harden
Mill out pockets for top-part of links
Fill with Solder Mask (orange) and wait for it to cure
Step 6
Plane off Solder Mask
Pour Wax (blue), wait for it to harden
Plane off wax and add channels for pouring urethane
Step 7 (not shown)
Wash away Solder Mask
Pour in Polyurethane
Melt away Wax
|
|
