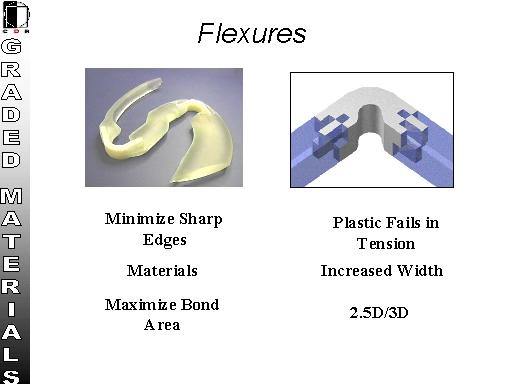

- Soft Materials Allow Larger Cross Section with Equal Compliance
2. Maximize Bond Area - Increase Surface Area
- Run Soft Material Deeper into Hard Material
3. Increased Width (in extrude direction for 2.5D shapes)
- Increases stiffness out of plane
4. Keep Areas of High Stress Concentration Long
5. Minimize Sharp Edges where stress concentration develop.
